Dosing System

Gravity automatic dosing system

FY-SGB-200-4
Save space, easy to clean, reliable performance, easy maintenance, to ensure the best batching accuracy, more than six components can be customized, multiple language options, can store more than 100 groups of formulas, etc.
Contact Us
Quick Inquiry

1Modular and detachable structure design, saving space and easy to clean;

2Using a general-purpose PLC controller to ensure reliable performance and easy maintenance;

3Adopt advanced control algorithm, self-optimization, automatic adjustment compensation and vibration prevention functions to ensure the best batching accuracy;

4 The standard model can handle up to four components (more than six components can be customized);

5Color graphic display, touch screen operation, multiple languages for your choice;

6 With formula storage function, it can store more than 100 groups of formulas at most;

7 Hierarchical security password control and alarm history record function;

8 The controller is equipped with a standard USB2.0 interface, which can store the mixing ratio data in the U disk, which is convenient for production quality control;

9 With sound and light alarms, it is convenient for equipment personnel to quickly and accurately reach the site of the malfunctioning machine;

10 All parts in contact with raw materials are made of stainless steel to prevent raw materials from being contaminated;

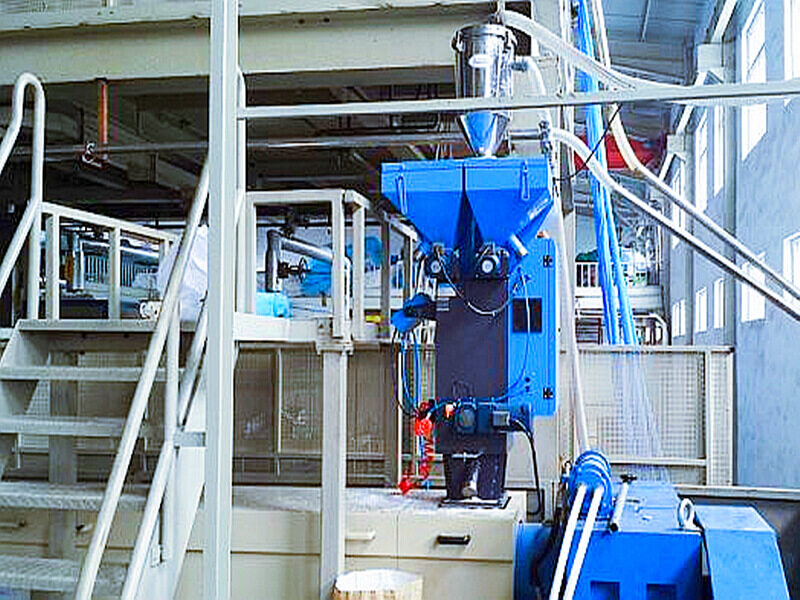

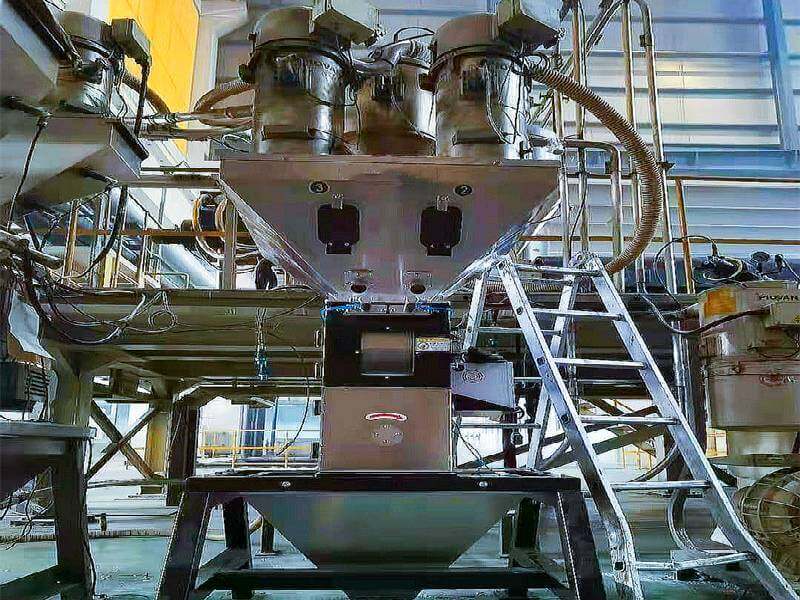

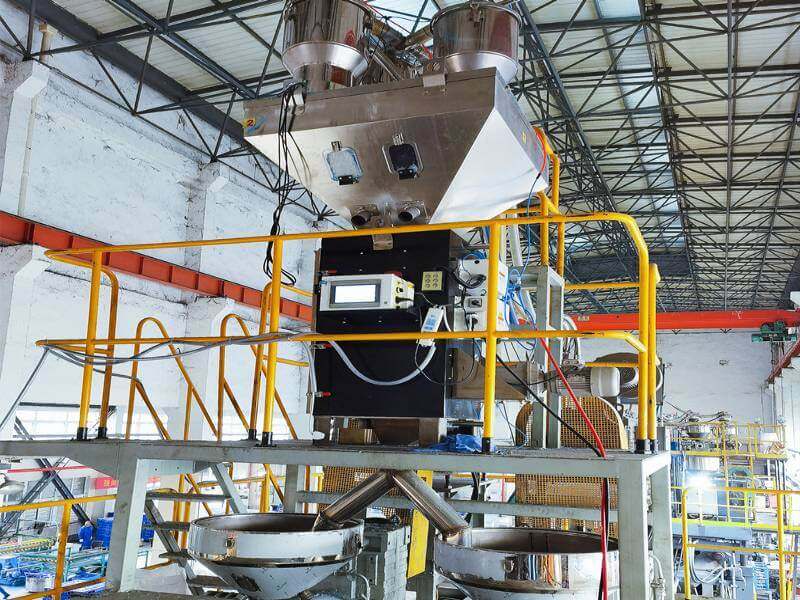

11 It can be directly installed on the machine or can be installed next to the machine with optional tripod (including pneumatic discharge valve)

Model:

FY-SGB-200-4

Number of groups:

4

Material capacity(kg/hr):

200

Batch weight(kg):

2.2

Mixing range of main ingredients(%):

5-100

Additive mixing range(%):

0.5-10

Main hopper volume(L):

32

Additive hopper volume(L):

32

Volume of mixing tank(L):

20

Power specification(V/HZ):

1φ230V/50

Total power(KW):

0.25

Compressed air(Kgf/cm2):

6-8

Noise(db):

<75

DimensionsH*W*D(mm):

1225*815*770

Base(mm)(H×W×D×B×A×C):

200*313*323*180*150*13

Mobile tripod(mm)(H1×H2×W×D):

800*850*780*610

Net weight(kg)(machine installation type):

130

Net weight(kg)(ground installation type):

155
