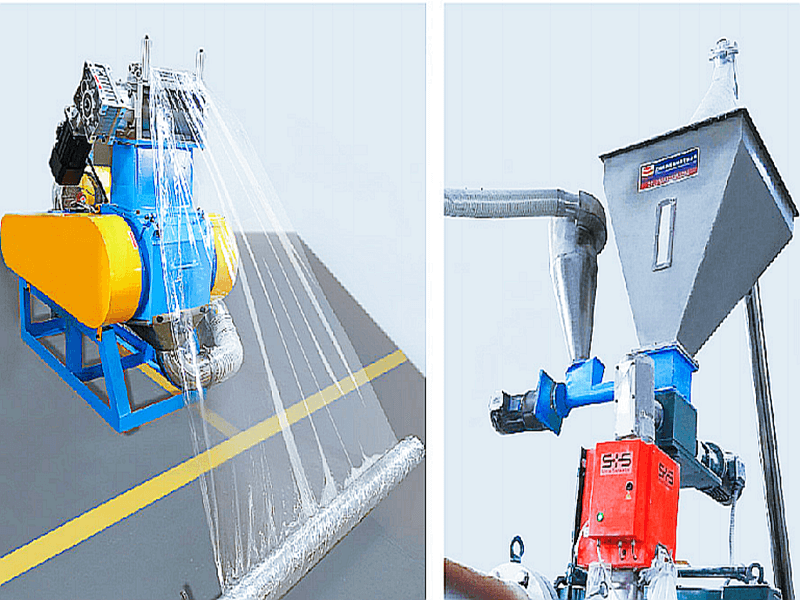

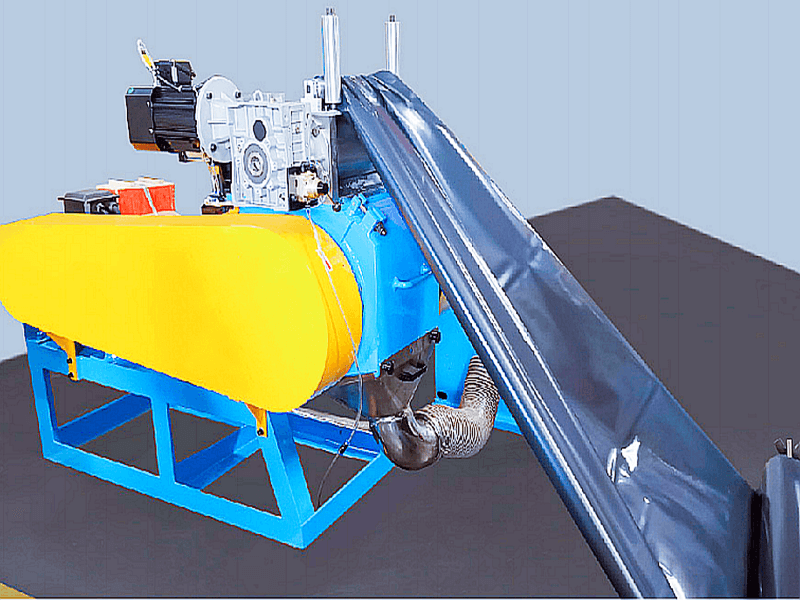

Automatically synchronously print and take side material crushing bags or directly transport them to the hopper of the extruder.
Scissors design, the inner and outer knives are both inclined at 2 degrees, the upper and lower difference is large, the scissors are very powerful, and the horsepower consumption is saved.
|
Crushing motor： |
15KW |
|
Rotation diameter： |
300mm |
|
knife length： |
400mm |
|
blade material： |
Swiss knife |
|
Fixed knife number： |
rows∕1PC |
|
Number of rotary tools： |
rows∕2PC |
|
aperture： |
Ф6mm |
|
Fan motor： |
3.7KW |
|
Work volume： |
60-120kg/m |
|
Traction wheel mode： |
平轮flat wheel |
|
Extraction motor： |
1.5KW |
|
gear reducer motor： |
1.5KW |
|
Diameter of cyclone separator： |
500mm |
|
Machine size： |
1400*1300*1200mm |
|
Lines speed： |
220m |
