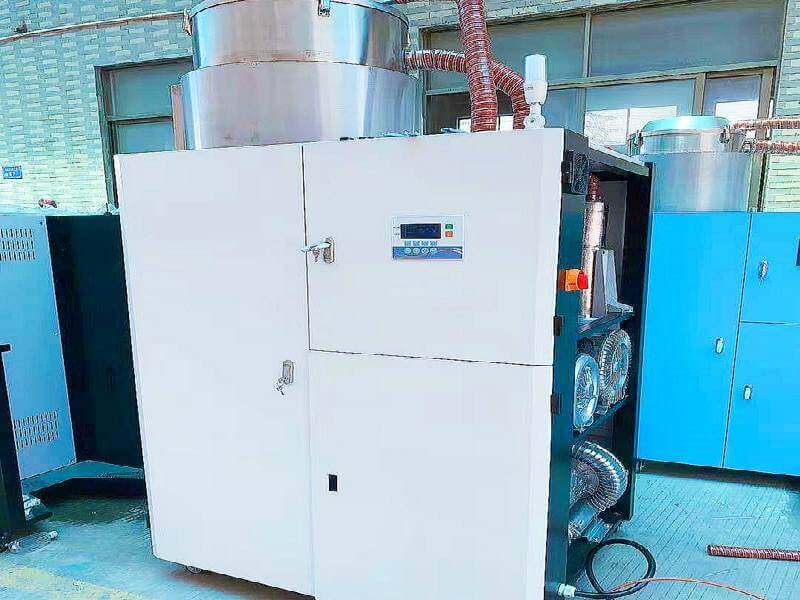

It integrates the three functions of dehumidification, drying and feeding. The heat-preserving drying barrel adopts a lower blower pipe design and a cyclone exhaust to prevent heat loss, ensure temperature and improve drying efficiency; equipped with a closed loop feeding system to avoid drying The raw material gets damp again due to contact with outside air, etc.
Equipped with honeycomb runners to obtain dry air with good stability and low dew point. The shape is divided into two types: semi-open and fully enclosed;
Suitable for engineering plastic materials with strong moisture absorption, such as: PA, PC, PBT, PET, etc.;
It integrates the three functions of dehumidification, drying and feeding. The heat-preserving drying barrel adopts a lower blower pipe design and a cyclone exhaust to prevent heat loss, ensure temperature and improve drying efficiency; equipped with a closed loop feeding system to avoid drying The raw material gets damp again due to contact with outside air, etc.
|
FY-SCD-2300L/1500H Technical Parameter Table of Dehumidifying and Drying Feeding Combination |
||
|
|
Model |
FY-SCD-2300L/1500H |
|
|
Item Name |
Specification |
|
Drying system |
Drying electric heating power (KW) |
24 |
|
Drying fan power (KW) |
5.5 |
|
|
Insulation tank capacity (L) |
2300 |
|
|
Dehumidification system |
Regenerative electric heating power (KW) |
10 |
|
Regenerative fan power (KW) |
1.5 |
|
|
Dehumidification air volume (m3/hr) |
1500 |
|
|
Feeding system |
Feeding fan power (KW) |
2.4 |
|
Suction machine piping (inch) |
2 |
|
|
SHR-U-E material door (L) |
24 |
|
|
SHR-U material door (L) |
24 |
|
|
Machine dimension |
H(mm） |
3070 |
|
W(mm） |
2140 |
|
|
D(mm） |
1380 |
|
|
Net weight（kg） |
900 |
|
|
Accessories |
Suction machine piping(M) |
2 |
|
Europeanization Electric Eye Hopper（L） |
24*1 |
|
|
Vacuum hopper（L） |
24*1 |
|
|
Suction white iron pipe(M) |
2.5 |
|
|
Steel wire hose (M) |
15 meters |
|
|
Configuration |
1. Taiwan Aired Motor |
|
|
2. French Schneider electrical components |
||
|
3. Stainless steel material (Europeanization drying barrel) |
||
|
4. Taiwan Jinggang Microcomputer Control Panel |
||
|
5. Swedish honeycomb runner |
||
|
6. Taiwan Jiehong Electric Heating Tube |
||
